Tungsten carbide pellets are applied for making cold heading and cold punch, cold mold for production of standard parts, bearing, tool and other industries; warheads and shells of stamping dies.

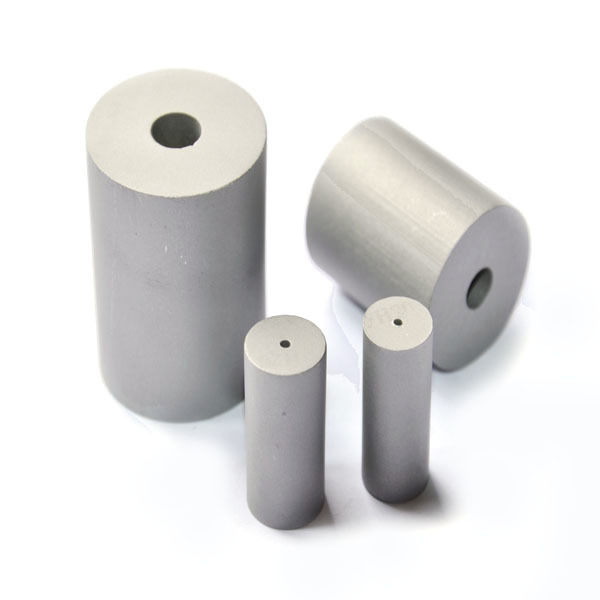

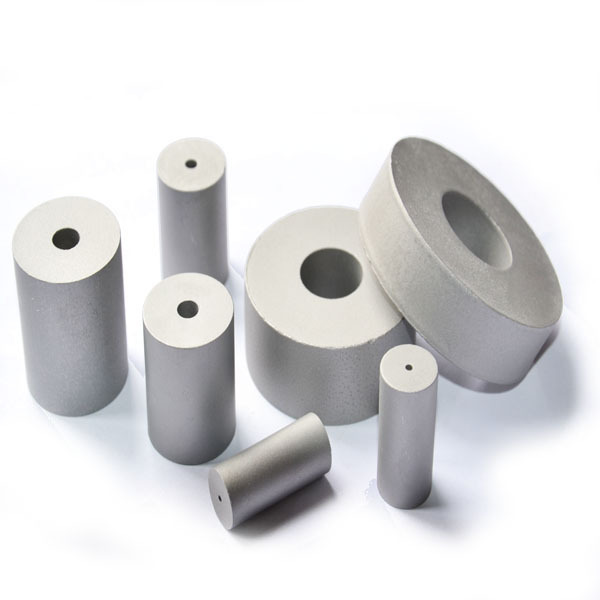

Carbide Pellets available in different sizes and diameters

INQUIRY

PDF Format

Description Material Grade

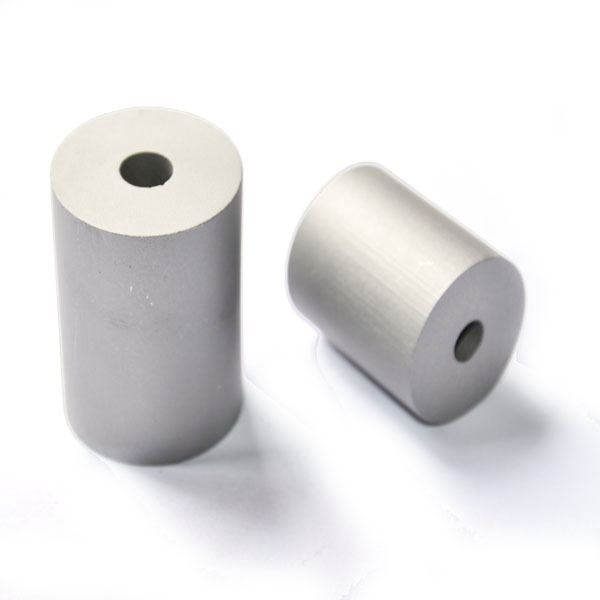

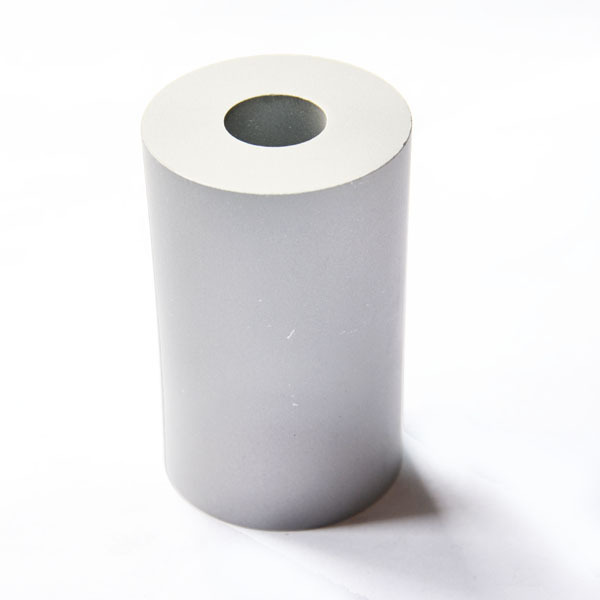

YG20 Tungsten carbide pellets

Size specifications:

Unit:mm

D(mm)	tolerance	d(mm)	tolerance	H(mm)
8	0.3-0.5	≤2.0	0.1-0.15	≤16
10	0.3-0.5	≤5.0	0.1-0.15	≤20
12	0.3-0.5	≤2.5	0.1-0.15	≤24
13	0.3-0.5	≤9.7	0.1-0.15	≤26
15	0.3-0.5	≤3.5	0.1-0.15	≤30
16	0.3-0.5	≤8.0	0.1-0.15	≤32
19	0.3-0.5	≤3.0	0.1-0.15	≤38
20	0.3-0.5	≤5.2	0.1-0.15	≤40
21	0.3-0.5	≤4.0	0.1-0.15	≤42
22	0.3-0.5	≤8.4	0.1-0.15	≤44
23	0.3-0.5	≤3.5	0.1-0.15	≤44
25	0.3-0.5	≤18.6	0.1-0.15	≤50
26	0.3-0.5	4.8	0.1-0.15	≤52
28	0.3-0.5	7.0/17.8	0.1-0.15	≤56
30	0.3-0.5	≤23	0.1-0.15	≤60
32	0.3-0.5	10	0.1-0.15	≤64
35	0.3-0.5	≤18.5	0.1-0.15	≤70
36	0.3-0.5	10	0.1-0.15	≤72
40	0.3-0.5	≤15.8	0.1-0.15	≤80
42	0.3-0.5	10.4/17.4	0.1-0.15	≤84
45	0.3-0.5	≤23.2	0.1-0.15	≤90
48	0.3-0.5	≤29.4	0.1-0.15	≤96
50	0.3-0.5	≤22.7	0.1-0.15	≤100
52	0.3-0.5	18.0/12.0	0.1-0.15	≤104
54	0.3-0.5	18	0.1-0.15	≤108
55	0.3-0.5	≤28.3	0.1-0.15	≤110
60	0.3-0.5	≤31.5	0.1-0.15	≤120
62	0.3-0.5	18	0.1-0.15	≤124
64	0.3-0.5	18	0.1-0.15	≤128
65	0.3-0.5	≤34.6	0.1-0.15	≤130
70	0.3-0.5	≤55.0	0.1-0.15	≤140
75	0.3-0.5	≤45.0	0.1-0.15	≤150
85	0.3-0.5	≤22.0	0.1-0.15	≤170

Other sizes could be produced under your drawing.

Grade	Chemical Composition	Physical Property
	Chemical Composition	Physical Property
		Density(g/cm3)	Hardness		TRS（N/mm2)
	Co(%)	Density(g/cm3)	Hardness	H.C Ka/m(Qe)	TRS（N/mm2)
YG06	6±0.5	14.90-15.00	89.8-90.8	8.0-13.0 (100-162)	2200-2300
YG06A	6±0.5	14.90-15.00	90.0-91.0	9.5-14.0 (118-175)	2300
YG08	8±0.5	14.70-14.80	89.0-90.0	8.0-11.1 (100-140)	2200-2500
YG08A	8±0.5	14.70-14.80	89.8-90.6	10.3-15.1 (130-190)	2500
YG09	9±1.0	14.45-14.85	≥89.0		≥2800
YG10	10±0.5	14.50-14.60	88.0-88.8	6.8-9.6 （85-120）	2900
YG10A	10±0.5	14.50-14.60	88.6-89.4	7.2-10.7 (90-135)	2950
YG12	12±0.5	14.23-14.43	87.4-88.4	4.8-7.5 （60-95）	2900
YG13	13±0.5	14.10-14.30	87.0-88.0	6.4-8.8 （85-110）	2750
YG13A	13±0.5	14.12-14.32	88.0-89.0	8.8-11.6 （110-145）	2900
YG15	15±0.5	13.99-14.09	87.0-88.0		2900-3100
YG16	16±0.5	13.90-14.00	86.0-87.2	5.6-8.4 （70-105）	2800-3000
YG16C	16±0.5	13.90-14.00	85.0-86.0	4.4-6.4 （55-80）	2500-2700
YG16H	16±0.5	13.85-13.95	86.3-88		2900-3200
YG18	18±0.5	13.7-13.8	85.5-86.5		2450-2550
YG20	20±0.5	13.50-13.60	84.6-85.6	3.6-5.6 （45-70）	2350-2450
YG20C	20±0.5	13.5-13.7	82.5-83.0		2550-2650
YG25	25±0.5	13.05-13.25	83.0-84.0	4.4-5.6 （55-70）	2600
YH10	20±0.5	13.5-13.6	83.0-83.5
YH20	22±0.5	13.3-13.4	82.0-82.5
YH30	25±0.5	13.1-13.2	81.5-82.0
Other grades can be provided as per your requests.
