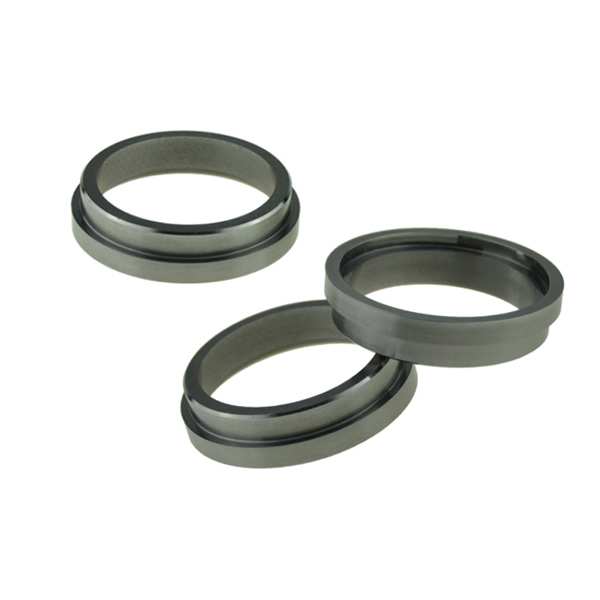

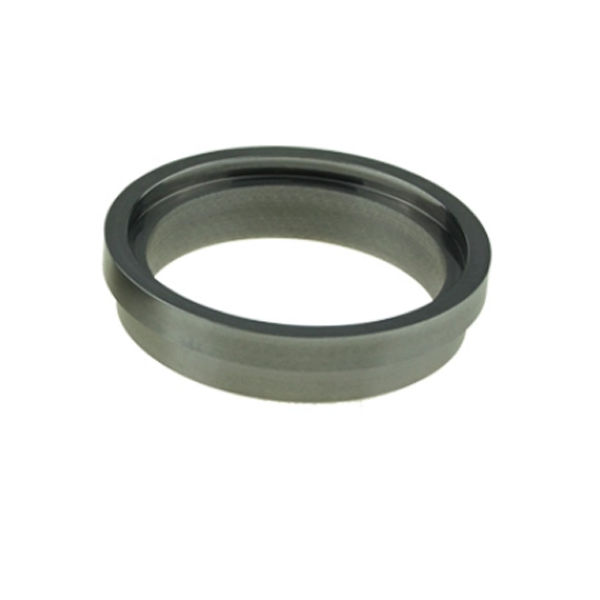

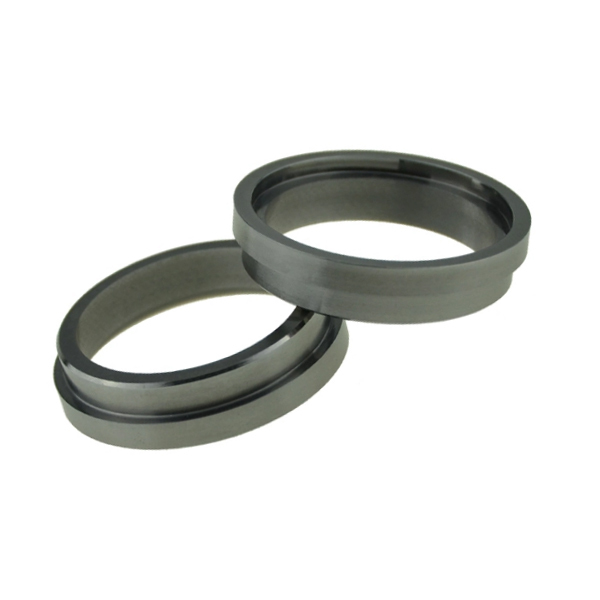

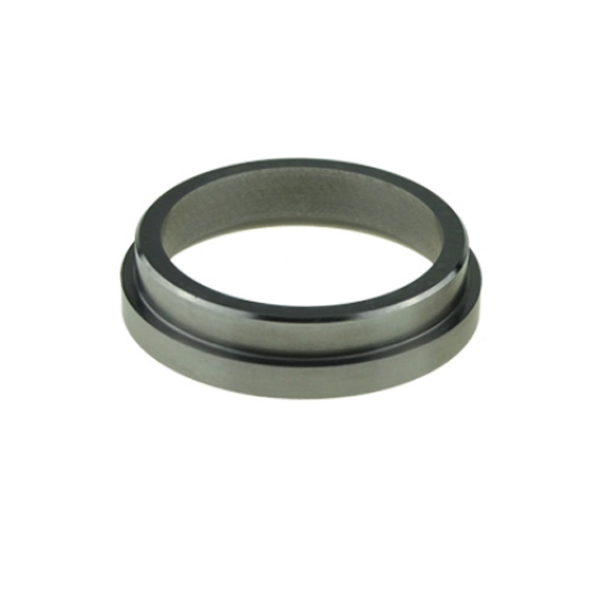

Sintered Tungsten Carbide Mechanical Sealing Ring

Mechanical sealing rings made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

GET A QUOTE

Add to Quote List View Quote List

Description

Sintered Tungsten Carbide Mechanical Sealing Ring

Mechanical sealing rings made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Tungsten carbide mechanical seal rings are used as mechanical seal faces in pumps, Compressors and Agitators.
Carbide seal rings are used in oil refineries, Petrochemical plants,Fertilizer Plants and Drug/Pharmaceutial Industries.

Material grade details of tungsten carbide mechanical seal rings:

Grade	Main Chemical Component (%)			Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
Grade	WC	Co	Ni	Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
YN6	94	\	6	89	14.5-14.9	1500
YN8	92	\	8	88	14.4-14.8	1650
YN10	90	\	10	87	14.5-14.9	2100
YG6	94	6	\	89.5	14.7-15.1	1550
YG8	92	8	\	89	14.6-14.9	1850
YG13	87	13	\	88	13.9-14.2	2400
YG15	85	15	\	87	13.9-14.2	2500

Other material could be prodcued under your requirements.

Sizes of tungsten carbide mechanical seal rings produce under your drawing.
