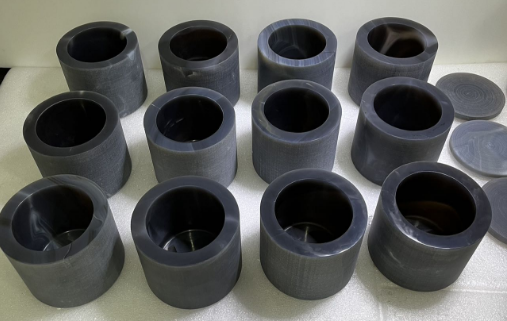

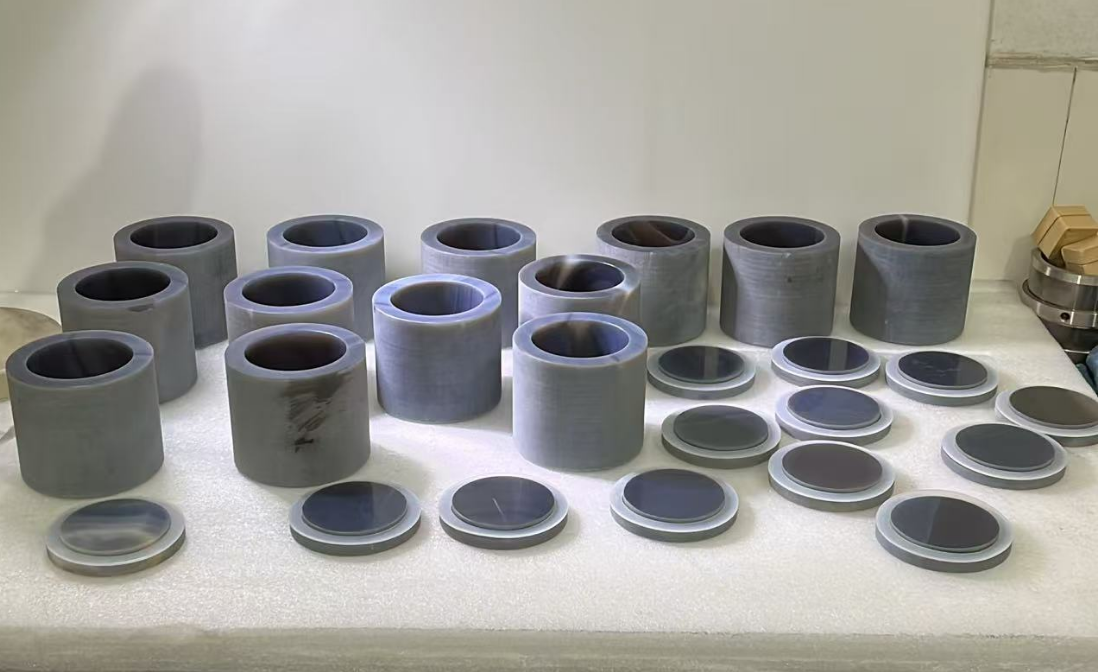

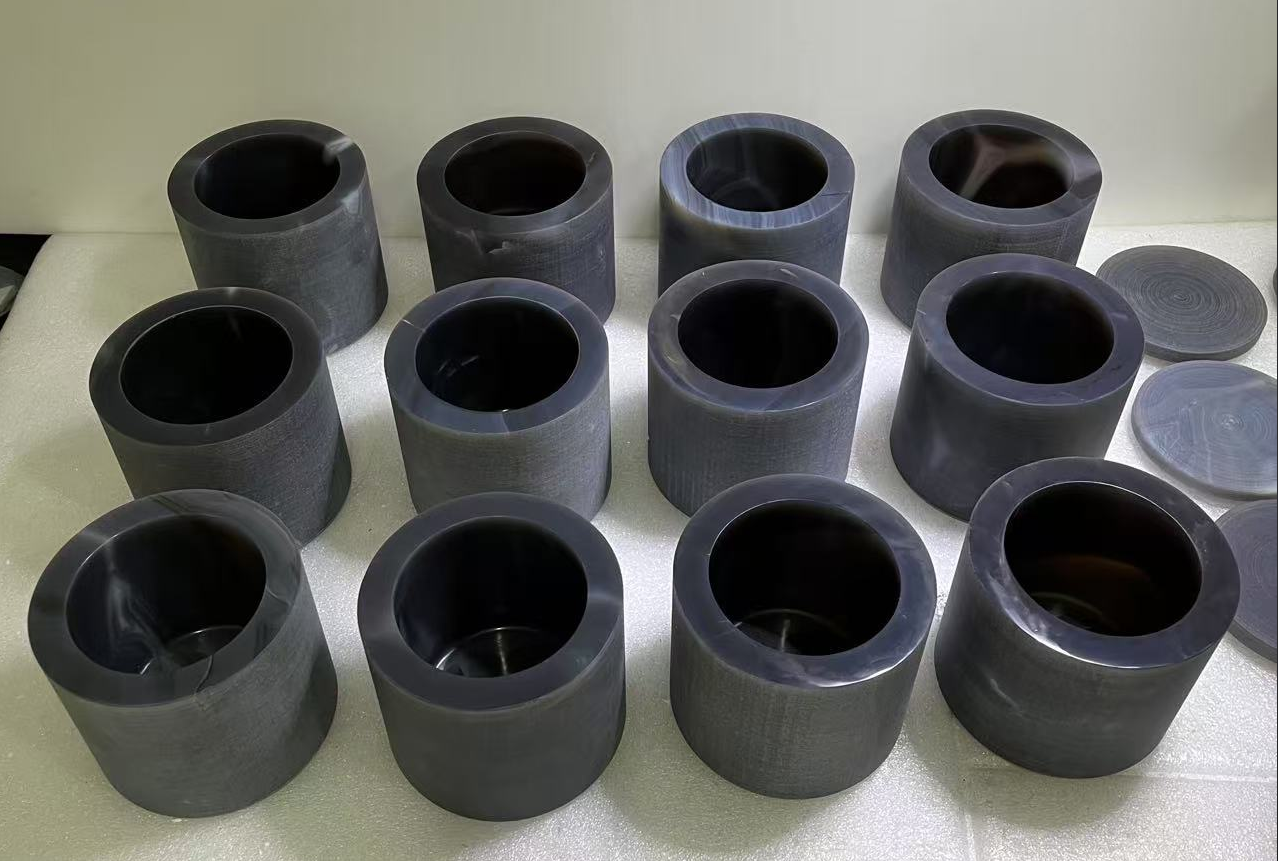

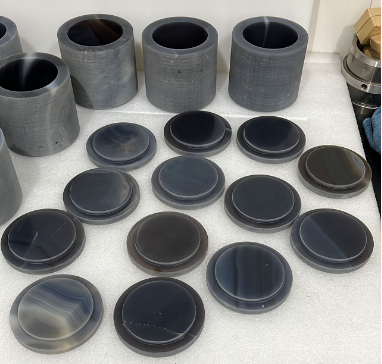

Agate Grinding Bowl Features:
1. The planetary agate grinding bowl is made of natural agate stone imported from Brazil and Uruguay. The purity and hardness meet the international quality technical standards, and the hardness is 0.5~1 higher than that of domestic stone.
Natural agate stone (SiO2: 97.26%, MgO/CaO/Mn2O3: 2.74%), Density: 2.65g/cm3, Hardness (HM): 6.5-7.
2. No impurities, no cracks, high gloss, strong vibration resistance. The test proves that the agate grinding bowls have no cracks or dents after high-speed vibration and wear,convex phenomenon.
3. The planetary agate grinding bowl has high temperature resistance, strong acid and alkali resistance, and can be used in acidic grinding media.
Agate Grinding Bowl Specification:
50ml-3000ml, special height, shape and size can be customized according to customer requirements.

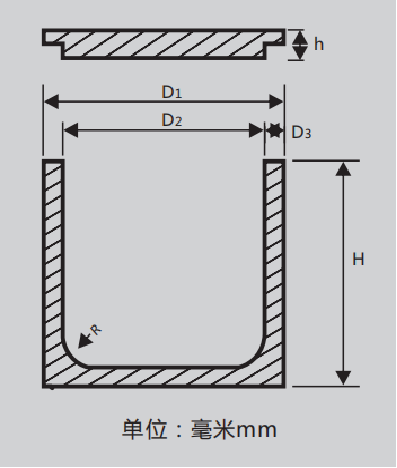

| Volume | D1 | D2 | H | h | D3 |
| 50 ml | 65 | 45 | 49 | 8 | 10 |
| 100ml | 73 | 53 | 62 | 8 | 10 |
| 150ml | 90 | 62 | 70 | 10 | 14 |
| 250ml | 100 | 75 | 80 | 10 | 12.5 |
| 300ml | 102 | 80 | 82 | 12 | 11 |
| 400ml | 104 | 83 | 92 | 8 | 10.5 |
| 500ml | 106 | 86 | 100 | 10 | 10 |
| 1000ml | 135 | 105 | 126 | 15 | 15 |
| 2000ml | 156 | 130 | 170 | 15 | 13 |
| 3000ml | 165 | 140 | 200 | 15 | 12.5 |
Above sizes are for reference only, can produce under your drawing

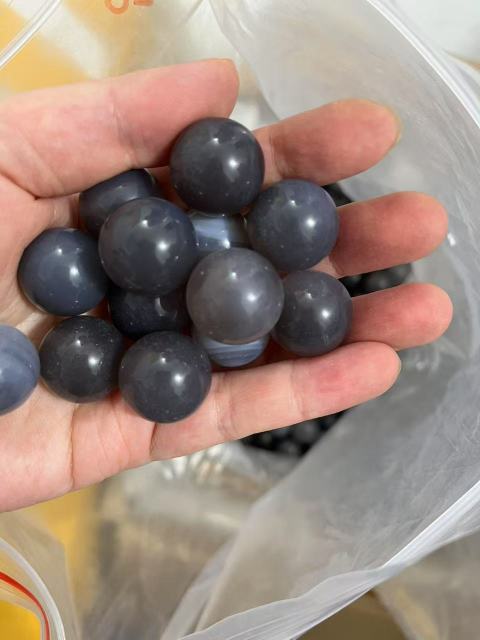

Agate Grinding Ball configurations:
| Volume of the grinding Jar | 50ml | 100ml | 150ml | 250ml | 300ml | 500ml | 1000ml | |
| Ball size/qty (%) | ɸ5mm | 50% | 50% | 50% | 50% | 50% | 50% | |
| ɸ8mm | 30% | 30% | 30% | 30% | 30% | |||
| ɸ10mm | 20% | 20% | 20% | 20% | 20% | 30% | 50% | |
| ɸ16mm | 20% | 30% | ||||||
| ɸ20mm | 20% | |||||||
| Total weight g | 50g | 75g | 100g | 150g | 225g | 300g | 600g | |
Agate Grinding Bowl Application:
The natural agate material has high hardness, super wear resistance, and does not bring in impurities, so the planetary agate grinding bowl is the first choice for grinding high-purity materials!
Planetary agate grinding bowls are widely used in electronic materials, optoelectronic materials, biomedicine, scientific research and chemical industry, ceramic glaze paste, non-metallic minerals, new materials and other high-demand ball milling processes.
