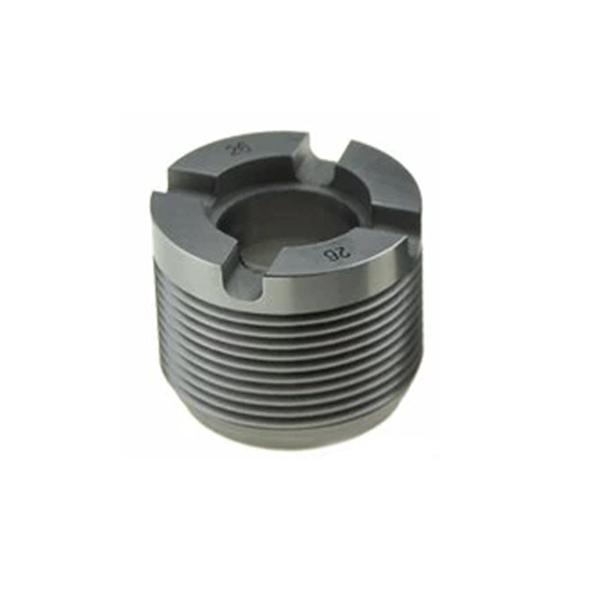

Name: High Quality Tungsten Carbide Thread Nozzle Cross Slot For Oil Drilling Bit
Brand: Max carbide
Availability: InStock
Rating: 5 (1 reviews)

Tungsten carbide thread nozzles mainly used for PDC drill bits for flushing, cooling and lubricating drill bits buttons.

INQUIRY

PDF Format

Description

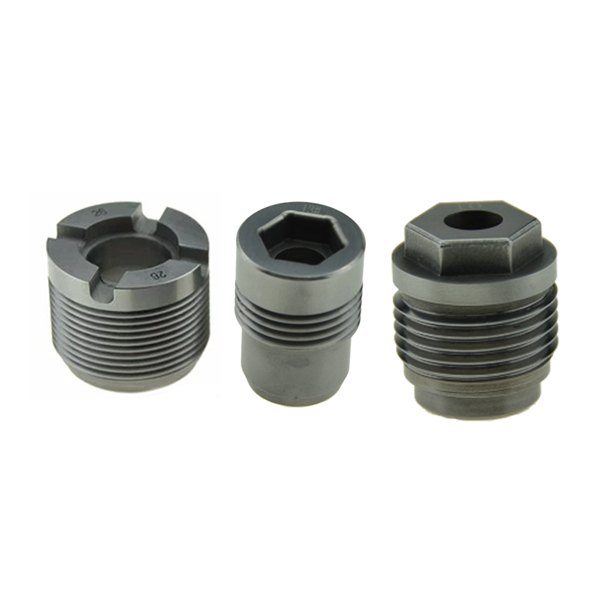

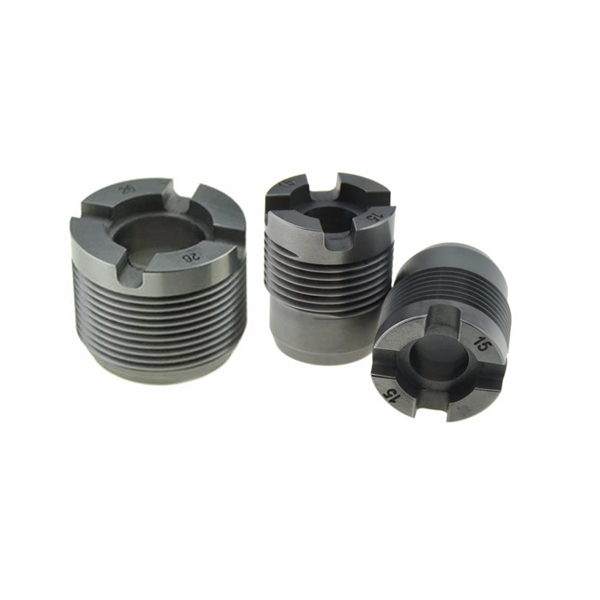

High Quality Tungsten Carbide Thread Nozzle Cross Slot For Oil Drilling Bit

Tungsten carbide nozzles have excellent corrosion & erosion resistance. Mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.

Material grade details of tungsten carbide nozzles:

Grade	Main Chemical Component (%)			Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
Grade	WC	Co	Ni	Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
YN6	94	\	6	89	14.5-14.9	1500
YN8	92	\	8	88	14.4-14.8	1650
YN10	90	\	10	87	14.5-14.9	2100
YG6	94	6	\	89.5	14.7-15.1	1550
YG8	92	8	\	89	14.6-14.9	1850
YG13	87	13	\	88	13.9-14.2	2400
YG15	85	15	\	87	13.9-14.2	2500

Other material could be produced under your requirements.

Sizes of tungsten carbide nozzles produce under your drawing.

Application: tungsten carbide nozzles usually used in oil drilling bits, such as PDC drill bit and roller cone bits.

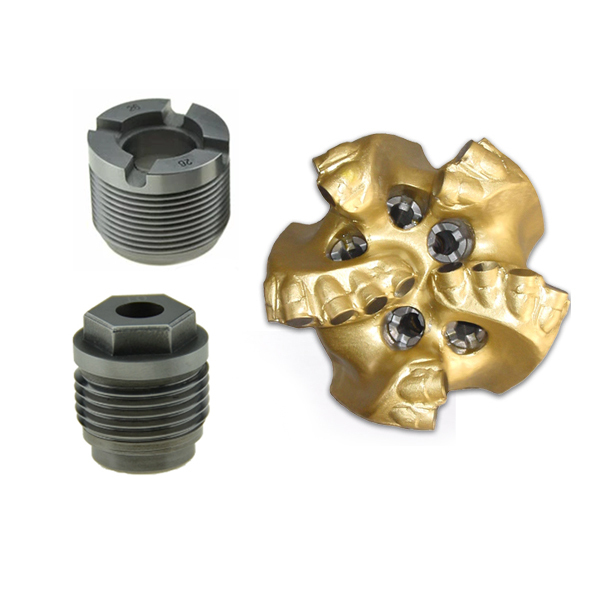

tungsten carbide nozzles for PDC bits
