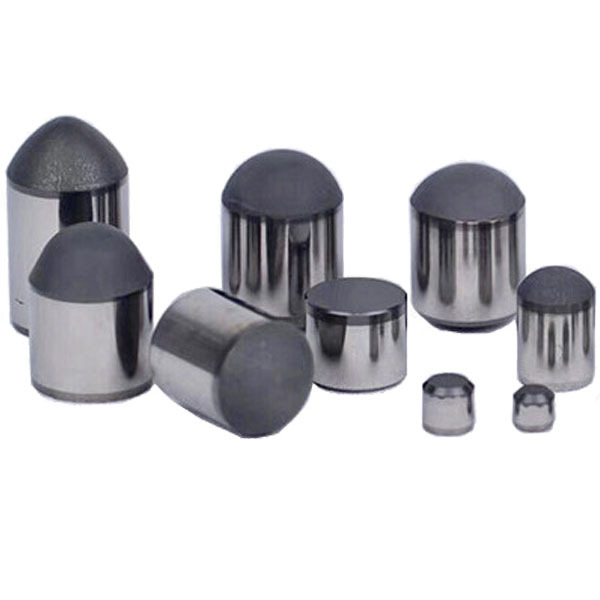

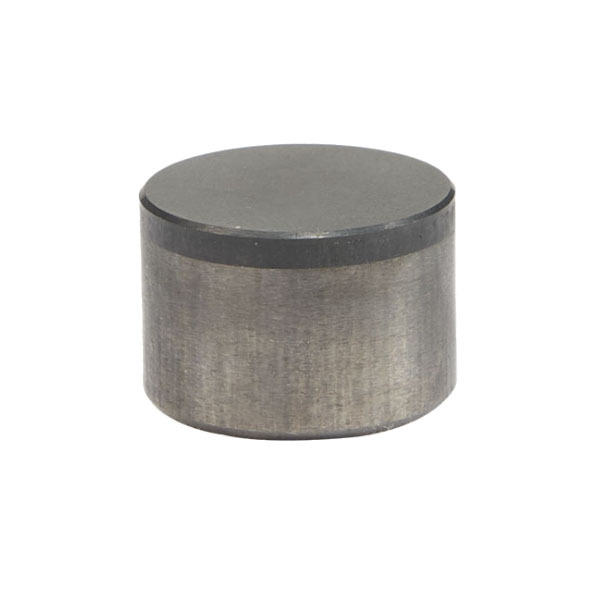

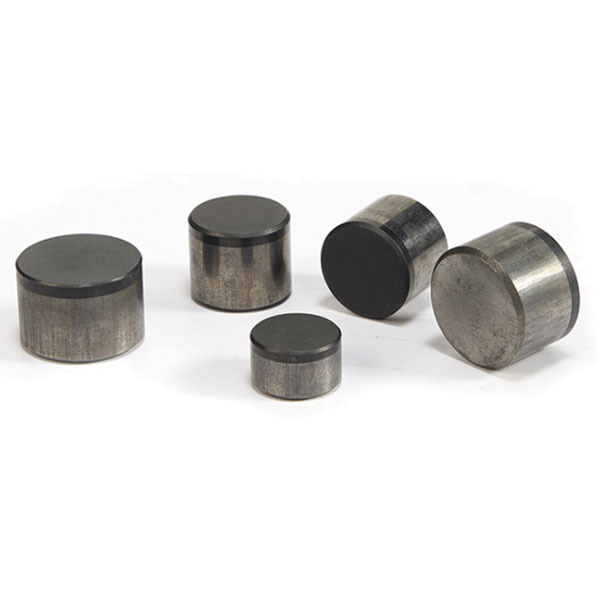

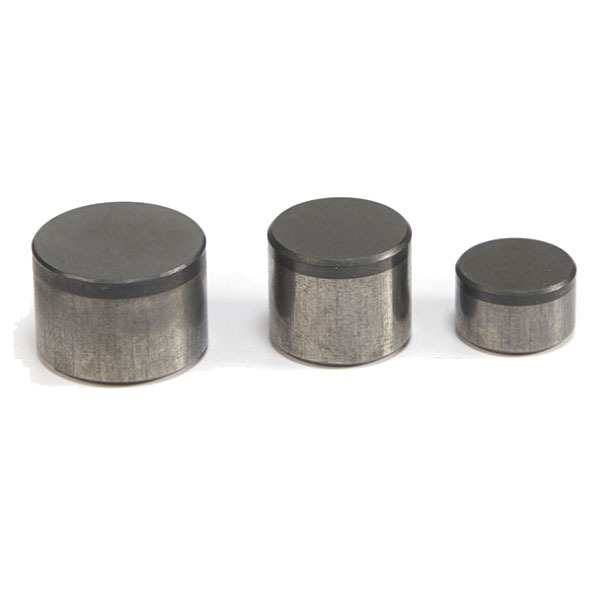

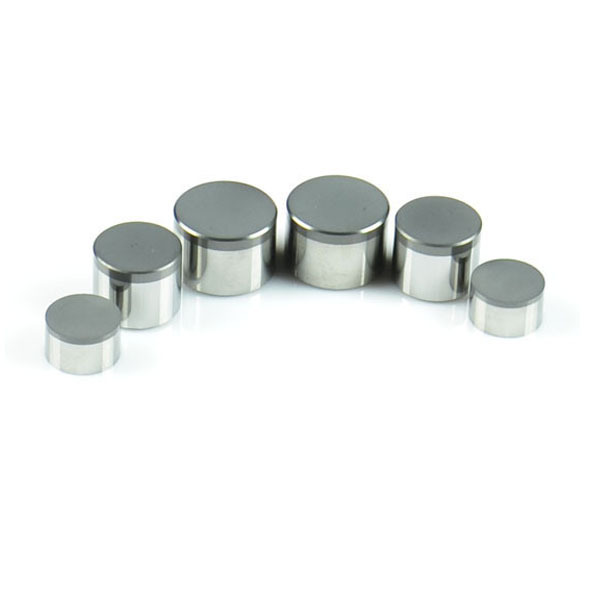

Polycrystalline PDC Cutter for Oil & Coal Drilling Bit
Polycrystalline PDC Cutter for Oil & Coal Drilling Bit Polycrystalline PDC Cutter for Oil & Coal Drilling Bit Polycrystalline PDC Cutter for Oil & Coal Drilling Bit Polycrystalline PDC Cutter for Oil & Coal Drilling Bit Polycrystalline PDC Cutter for Oil & Coal Drilling Bit

Polycrystalline PDC Cutter for Oil & Coal Drilling Bit

Synthetic polycrystalline diamond compact(PDC cutter) is composed of polycrystalline diamond layer and cemented carbide substrate. It is a kind of super-abrasive product sintered under super-high pressure and at high temperature.
INQUIRY
Description

Polycrystalline PDC Cutter for Oil & Coal Drilling Bit

PDC cutter: Synthetic polycrystalline diamond compact is composed polycrystalline diamond layer and cemented carbide substrate. It is a kind of super-abrasive product sintered under super-high pressure and at high temperature. With excellent wear-ability, this very hard product has very high impact toughness. It is mainly used for making PDC drilling tools applied in the field of coalfield,oilfield and deological drilling,etc.

Product Specification of PDC cutters
PDC cutter drawing
Size Diameter (mm) Total height (mm) Diamond thickness (mm) Diamond chamfer  carbide chamfer
1308 13.44±0.03 8.00±0.02 2.0±0.05 0.3mm*45° 0.8mm*45°
1313 13.44±0.03 13.20±0.02 2.0±0.05 0.3mm*45° 0.8mm*45°
1316 13.44±0.03 16.00±0.02 2.0±0.05 0.3mm*45° 0.8mm*45°
1608 16.00±0.03 8.00±0.02 2.2±0.05 0.3mm*45° 0.8mm*45°
1613 16.00±0.03 13.00±0.02 2.2±0.05 0.3mm*45° 0.8mm*45°
1616 16.00±0.03 16.00±0.02 2.2±0.05 0.3mm*45° 0.8mm*45°
1908 19.05±0.05 8.00±0.02 2.3±0.05 0.3mm*45° 0.8mm*45°
1913 19.05±0.05 13.00±0.02 2.3±0.05 0.3mm*45° 0.8mm*45°
1916 19.05±0.03 16.00±0.02 2.3±0.05 0.3mm*45° 0.8mm*45°
Remark: others sizes could be produced under your drawing.
