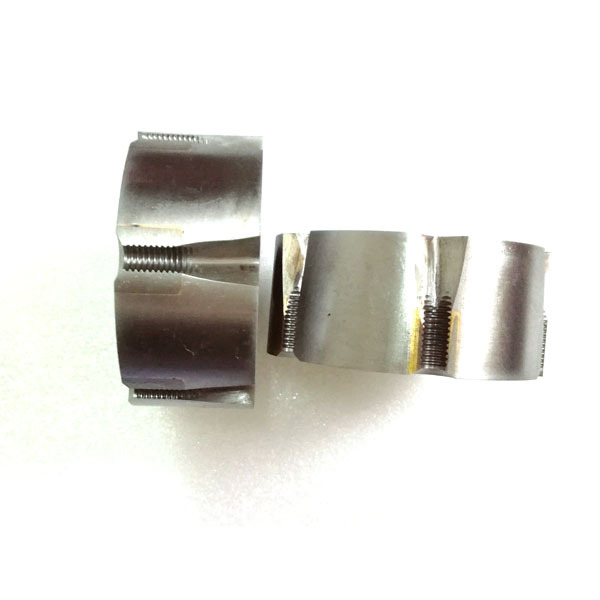

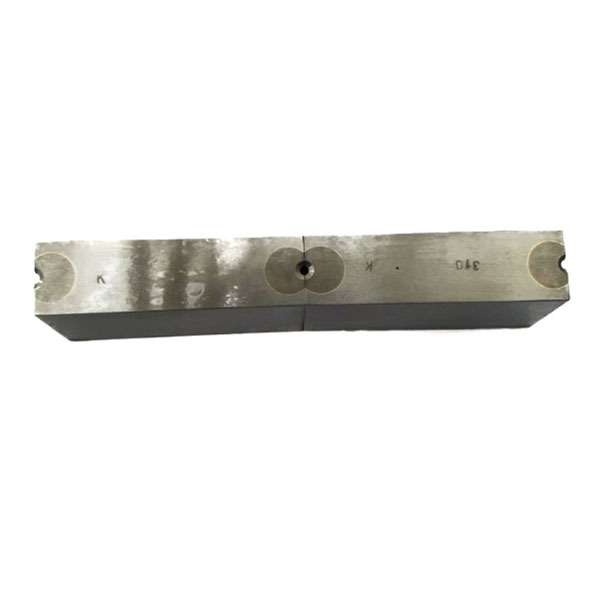

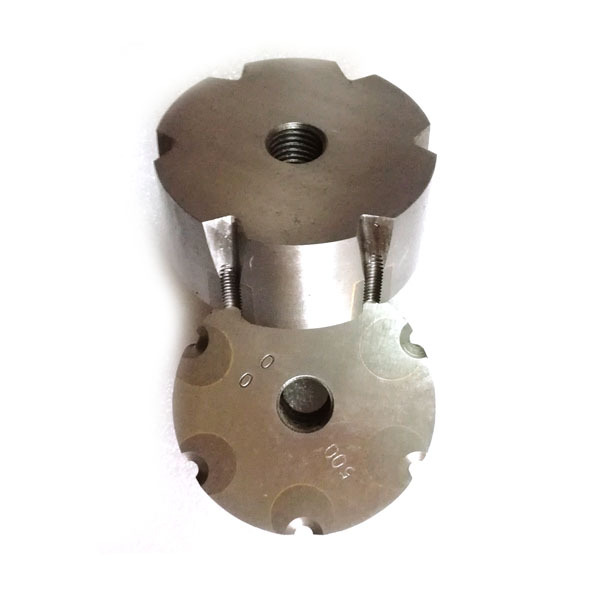

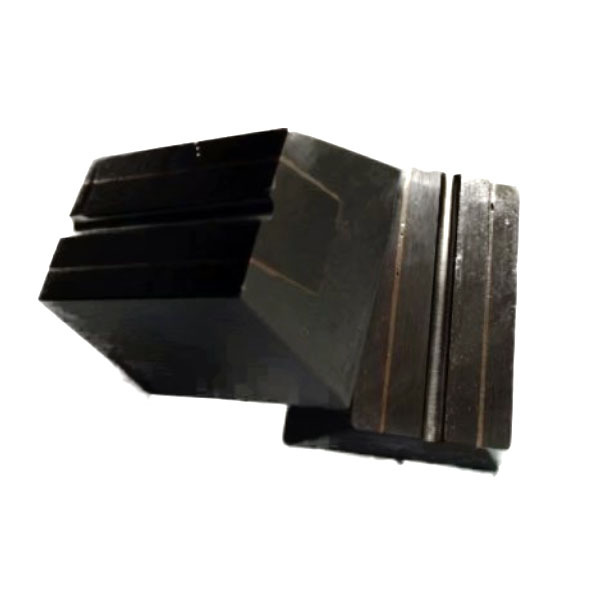

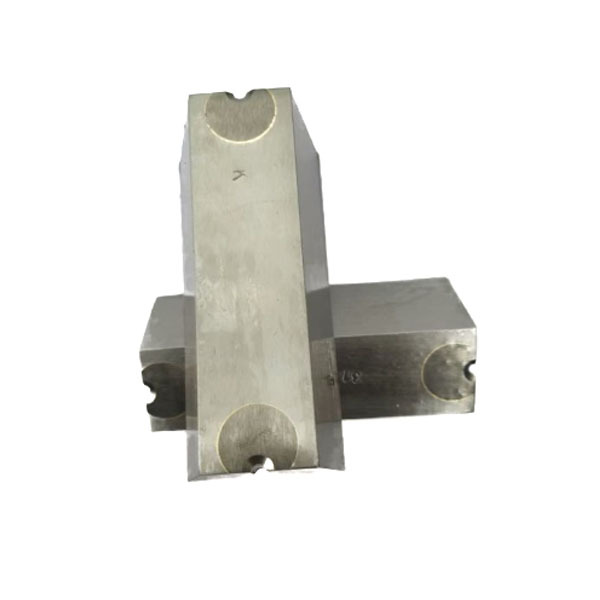

Tungsten Carbide Nail Gripper Dies
Working area is made of tungsten carbide, while other parts are steel. Nail gripper dies could in round or square shape.
Nail Gripper dies are used for making nails from copper, stainless steel, aluminum, iron, zinc etc.
Tungsten carbide Grade for making nail gripper dies:
| Grade |
ISO |
Density |
TRS |
Hardness |
Performance & Application Recommend |
| G/cm3 |
N/mm2 |
HRA |
| YG11C |
K40 |
14.35 |
2200 |
87.6 |
Forming or stamping dies for metal powders and nonmetal powders |
| YG15C |
K40 |
14 |
2500 |
85 |
Punching & stamping tools under large stress |
| YG18C |
K40 |
13.7 |
2700 |
84.5 |
Impact resistance forging dies,hot-press forging dies and rollers |
| YG20 |
K40 |
13.5 |
2400 |
83.5 |
For various dies made by cold forging,cold stampling and hot forging |
| YG20C |
K40 |
13.4 |
2600 |
81-82 |
Dies for wear resistance or impact resistant application |
Drawing of carbide nail gripper die inserts:
