Home> Products >Carbide Sleeve

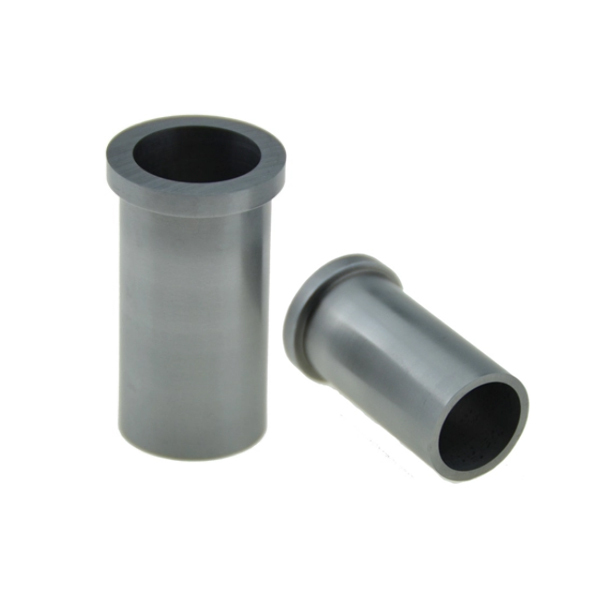

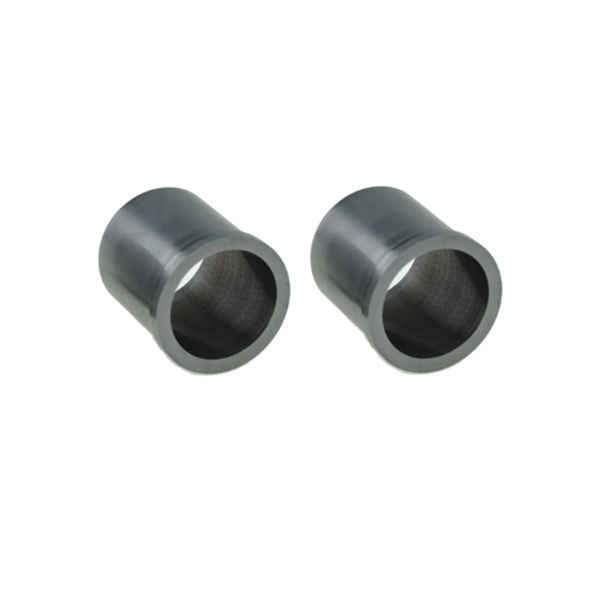

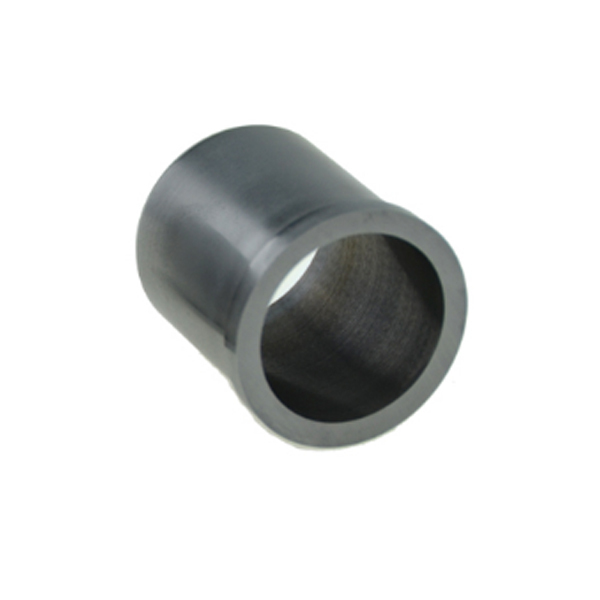

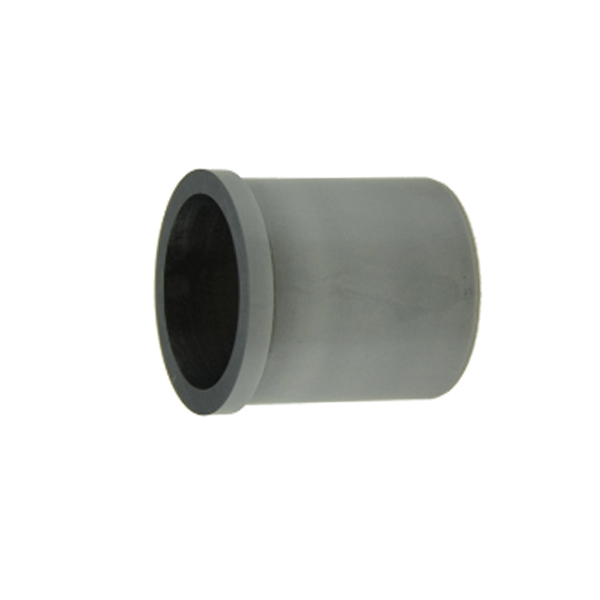

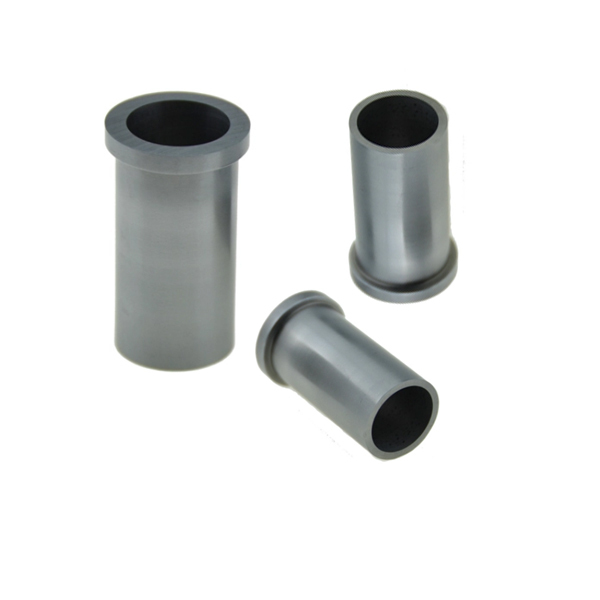

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

Name: Tungsten Carbide Straight Tube Bearing Sleeve Bushing
Brand: Max carbide
Availability: InStock
Rating: 5 (1 reviews)

Bushing & sleeves made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

INQUIRY

PDF Format

Description

Cemented Carbide Sleeves For Oil Pump From Zhuzhou

Bushing & sleeves made of tungsten carbide have the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Tungsten carbide bushing & sleeves are mainly used for rotating support, seal, and anti-trust of the axle in the motor of ESP, protector and centrifuge that work in the extreme adverse conditions.

Material grade details of tungsten carbide sleeves/ bush:

Grade	Main Chemical Component (%)			Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
Grade	WC	Co	Ni	Hardness (≥HRA)	Density (g/cm³)	T.R.S (≥N/mm²)
YN6	94	\	6	89	14.5-14.9	1500
YN8	92	\	8	88	14.4-14.8	1650
YN10	90	\	10	87	14.5-14.9	2100
YG6	94	6	\	89.5	14.7-15.1	1550
YG8	92	8	\	89	14.6-14.9	1850
YG13	87	13	\	88	13.9-14.2	2400
YG15	85	15	\	87	13.9-14.2	2500

Other material could be prodcued under your requirements.

Sizes of tungsten carbide sleeves/ bush produce under your drawing.
