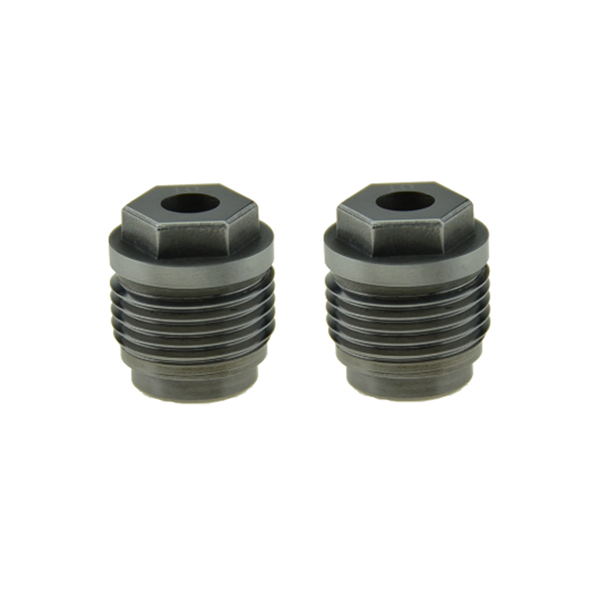

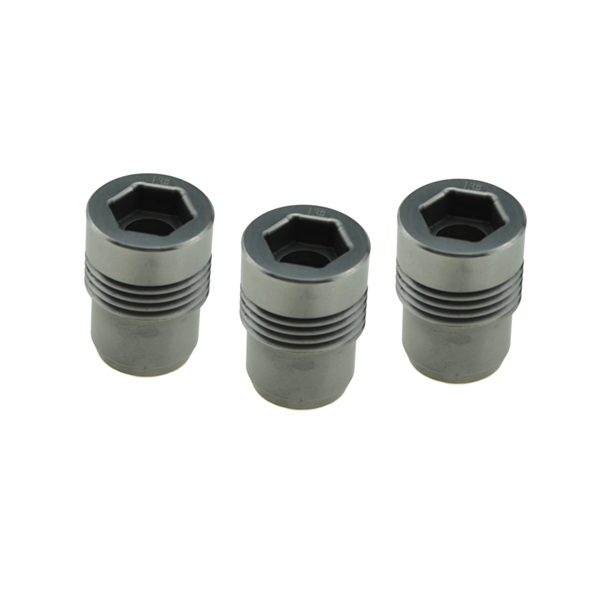

Tungsten Carbide Thread Nozzles With High Wear Resistance
Tungsten Carbide Thread Nozzles With High Wear Resistance Tungsten Carbide Thread Nozzles With High Wear Resistance Tungsten Carbide Thread Nozzles With High Wear Resistance Tungsten Carbide Thread Nozzles With High Wear Resistance Tungsten Carbide Thread Nozzles With High Wear Resistance

Tungsten Carbide Thread Nozzles With High Wear Resistance

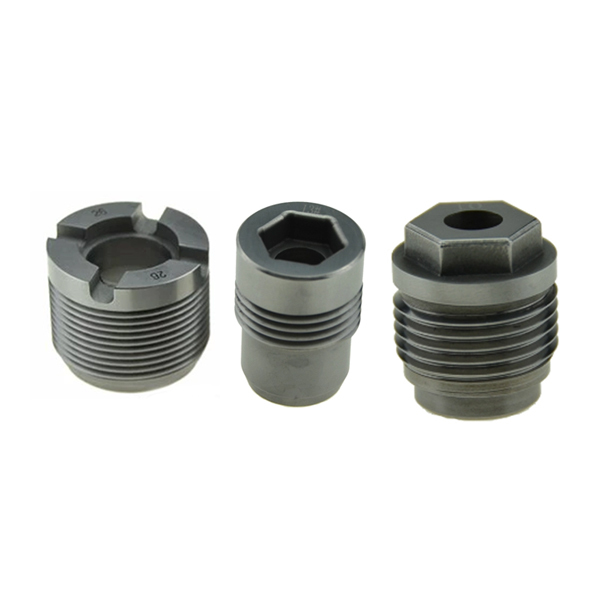

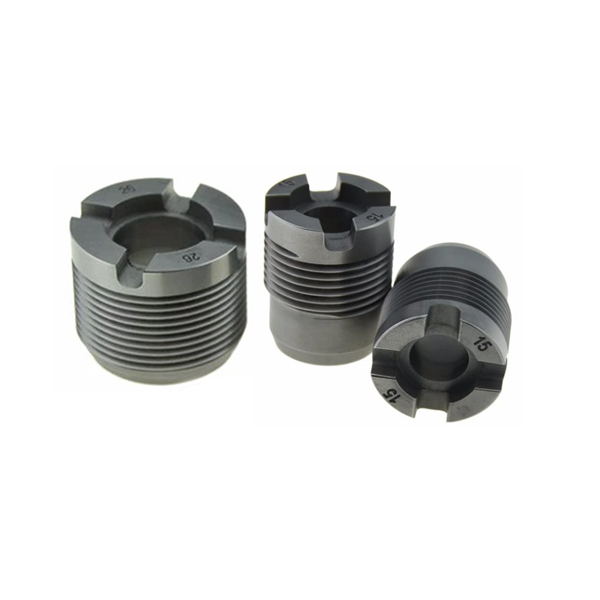

Tungsten carbide thread nozzles, have many types (cross slot/ hexagon... ) mainly used for oil drill bits for flushing, cooling and lubricating drill bits buttons.
INQUIRY
Description
Tungsten Carbide Thread Nozzles With High Wear Resistance

Tungsten carbide nozzles have excellent corrosion & erosion resistance. Mainly used in oil & gas industry, chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.

Material grade details of tungsten carbide nozzles:
Grade Main Chemical Component (%) Hardness (≥HRA) Density (g/cm³) T.R.S (≥N/mm²)
WC Co Ni
YN6 94 \ 6 89 14.5-14.9 1500
YN8 92 \ 8 88 14.4-14.8 1650
YN10 90 \ 10 87 14.5-14.9 2100
YG6 94 6 \ 89.5 14.7-15.1 1550
YG8 92 8 \ 89 14.6-14.9 1850
YG13 87 13 \ 88 13.9-14.2 2400
YG15 85 15 \ 87 13.9-14.2 2500
Other material could be prodcued under your requirements.

Sizes of tungsten carbide nozzles produce under your drawing.

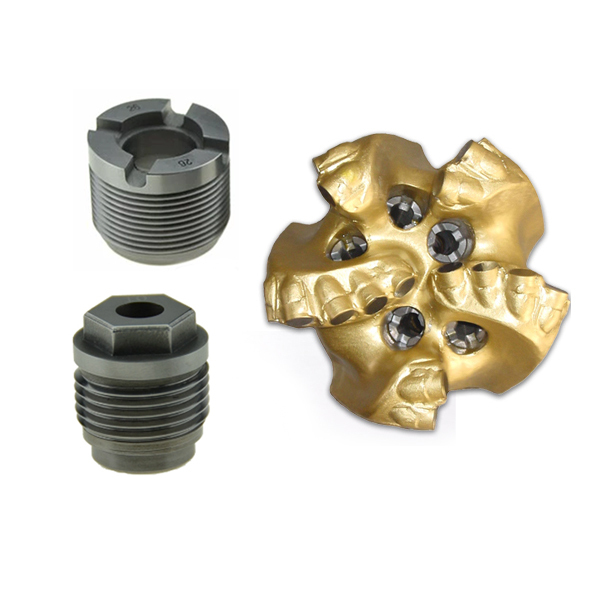

Application: tungsten carbide nozzles usually used in oil drilling bits, such as PDC drill bit and roller cone bits.
