Suggestions For Tungsten Carbide Planetary Mill Jar Selection
Views : 310
Author : Max Carbide
Update time : 2019-11-07 22:18:04
Suggestions For Tungsten Carbide Planetary Mill Jar Selection

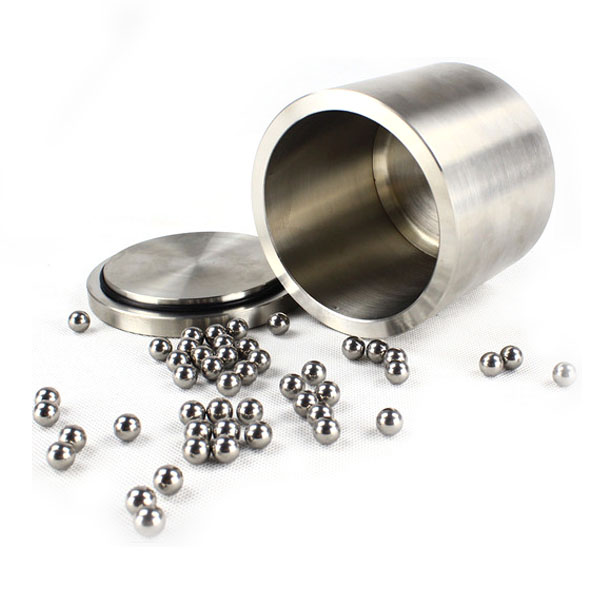

High polished tungsten carbide planetary mill jar, also called tungsten carbide ball mill grinding jar, has high wear-resistant and resistant to acid and alkali. Widely applied to in the fields of Metallurgy, Ceramics, Electronics, Light Industry, Paint, Medicine, Geology, Chemical Engineering and so on. Suggestions for selection tungsten carbide planetary mill jar:
Choose the tungsten carbide grade according to the material you want to be grind, the hardness of the grinding jars and balls must be higher than that of the material to be grinded to prevent excessive abrasion. Normally grinding jars and grinding balls of the same material should be chosen.
The grinding jars & balls configurations suggestions are as below:
Jar Volume
50ml
100ml
250ml
500ml
1000ml
Ball size/qty
Ø6mm
50 pcs
100 pcs
280 pcs
500 pcs
1000 pcs
Ø10mm
8 pcs
16 pcs
40 pcs
100 pcs
200 pcs
Ø20mm
2 pcs
3 pcs
The size of the tungsten carbide grinding jars and grinding balls should be determined experimentally if necessary. Any other questions on how to select tungsten carbide grinding jars and grinding balls, please feel free to contact: info@maxcarbide.com
